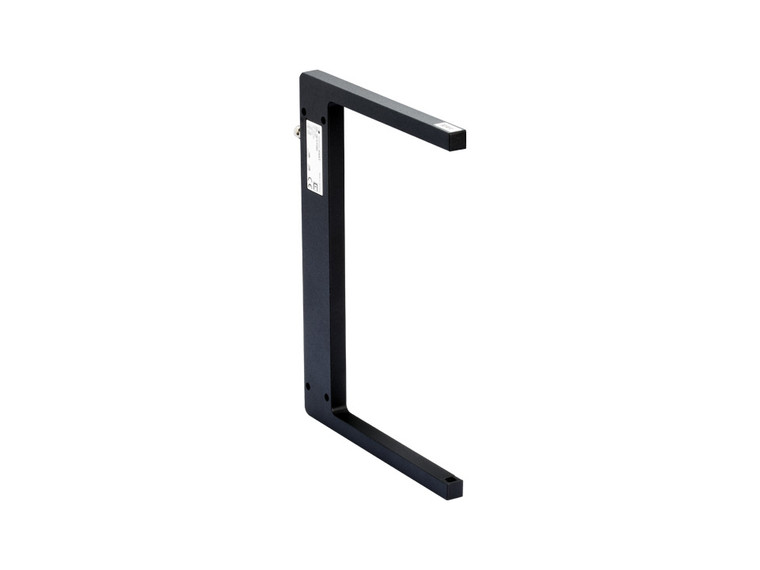

SensoPart FGL 5 R-PSM3 FGL - metal housing
Sensopart
$216.70
The SensoPart FGL 5 R-PSM3 is a high-performance fork sensor designed for precision and durability. Encased in a robust metal housing, this sensor is built to withstand demanding environments. With a fork width of 5 mm and utilizing red light technology, it excels in detecting small parts as tiny as 0.3 mm. The sensor offers a high switching frequency of up to 3000 Hz, ensuring rapid and accurate detection. It features a precise sensitivity adjustment via a potentiometer, allowing for tailored performance to suit specific applications. Additionally, the sensor provides flexibility with its switchable N.O. (Normally Open) and N.C. (Normally Closed) outputs. The device is equipped with a convenient M8 3-pin plug for easy integration into existing systems. Ideal for applications requiring reliable small part detection and high-speed operation, the SensoPart FGL 5 R-PSM3 is a versatile and dependable choice.
- Velocity [Hz]:
- 3000
- Series:
- Optical fork
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 5
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -10 ... +60
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP 67
