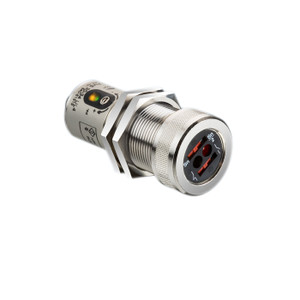

SensoPart FMS 30-44 U-56 Photoelectric proximity sensor for adaptation of fibre-optic cables
Sensopart
The SensoPart FMS 30-44 U-56 is a high-performance photoelectric proximity sensor designed for the adaptation of fibre-optic cables. It features an infrared light source with a frequency of 1000 Hz, ensuring rapid and reliable detection. The sensor offers both PNP and NPN normally open switching outputs, providing flexibility in various applications. With a maximum working distance of 1000 mm, it is suitable for a wide range of industrial environments.
The sensor is equipped with a 3-meter, 4-wire cable and a plug M12, 4-pin connection type, ensuring easy integration into existing systems. Its robust design is rated IP65, making it resistant to dust and water ingress, and it operates efficiently within a temperature range of -20 to +60°C. The adjustment is facilitated by a potentiometer, allowing for precise calibration to meet specific needs.
For further technical details, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links. This product is available for quote requests, ensuring you receive the best possible pricing and support for your application needs.
- Velocity [Hz]:
- 1000
- Series:
- M30
- Working distance max. [mm]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
