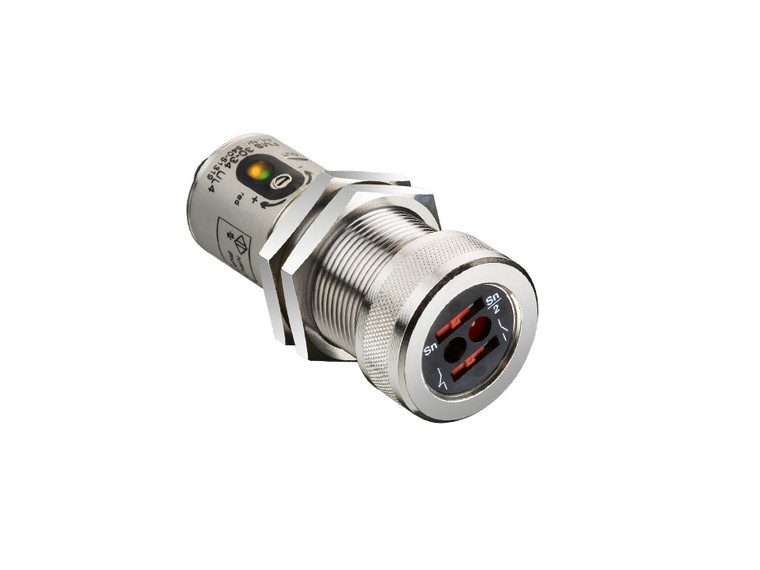

SensoPart FMS 30-44 UG-56 Photoelectric proximity sensor for adaptation of fibre-optic cables
Sensopart
The SensoPart FMS 30-44 UG-56 is engineered for high-performance detection, utilizing an infrared LED light source with a frequency of 1000 Hz for precise and reliable operation. It supports both PNP and NPN antivalent switching outputs, enhancing its versatility across various applications. With a maximum working distance of 1000 mm, this sensor is ideal for diverse industrial settings. Its 4-pin M12 plug connection ensures straightforward integration, while the IP65 enclosure rating offers robust protection against dust and water ingress. The sensor operates efficiently in temperatures ranging from -20 to +60°C, and its calibration is simplified by an adjustable potentiometer. Comprehensive resources, including the datasheet, catalog, operating instructions, and CAD files, are available for further technical details.
- Velocity [Hz]:
- 1000
- Series:
- M30
- Working distance max. [mm]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
