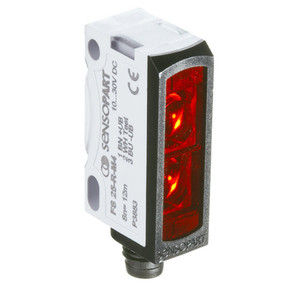

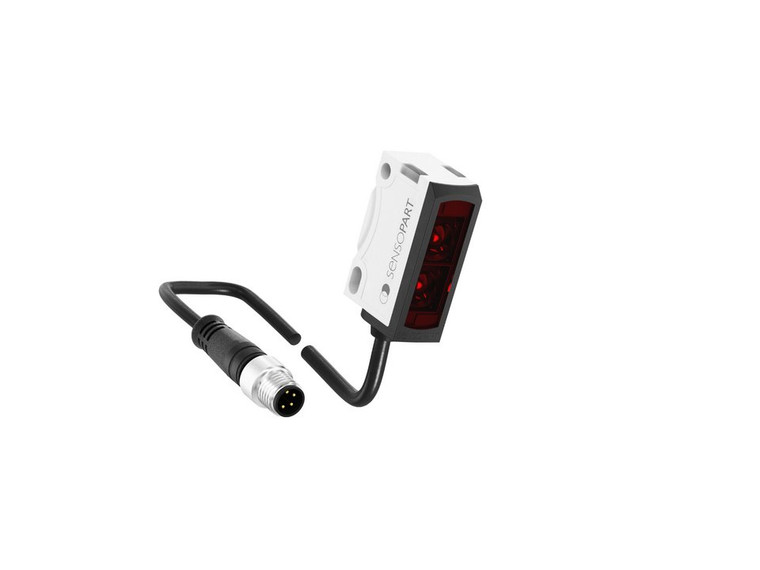

SensoPart FR 25-RF-NS-KM4 Photoelectric retro-reflective sensor, fixed focus
Sensopart
The SensoPart FR 25-RF-NS-KM4 is a high-performance photoelectric retro-reflective sensor designed for precision and reliability. Part of the F25 series, this sensor features a compact design with dimensions of 34 x 20 x 12 mm, making it ideal for space-constrained applications. It operates within a working distance range of 100 mm to 3000 mm and boasts a velocity of 1000 Hz, ensuring rapid response times. The sensor utilizes a red LED light source and offers an NPN switching output for seamless integration into various systems. With a robust enclosure rating of IP69K, it is built to withstand harsh environments and temperatures ranging from -20°C to +60°C. The sensor is equipped with a pigtail connection and a 4-wire M8 plug, providing easy installation and connectivity. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 3000
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- LED, red
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Pigtail, plug M8, 4-wire, 150 mm
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
