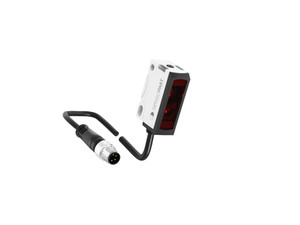

SensoPart FR 25-RGO2-PNSL-M4 Autocollimation photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 25-RGO2-PNSL-M4 is a high-performance autocollimation photoelectric retro-reflective sensor designed for precise detection of transparent objects over a range of 0 to 2 meters. Featuring a compact F25 series design (34 x 20 x 12 mm), this sensor offers a fast response time with a velocity of 1000 Hz. It is equipped with an IO-Link interface for seamless integration and supports both PNP and NPN switching outputs with auto-detection capabilities. The sensor utilizes a red LED light source and allows for easy adjustment through a teach-in function. With a robust enclosure rating of IP69, it is suitable for use in harsh environments, operating efficiently within a temperature range of -20 to +60°C. The connection is facilitated by a 4-pin M8 plug, ensuring secure and reliable connectivity. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:

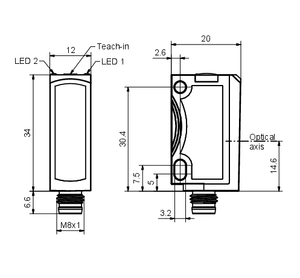

- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 2000
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
