SensoPart FR 55-RLAP-70-PNSIL-L5 Distance sensor with a reflector for large distances Time-of-flight technology and IO-Link
Sensopart
The SensoPart FR 55-RLAP-70-PNSIL-L5 is a high-performance distance sensor designed for large distances, utilizing advanced time-of-flight technology. This retro-reflective, cubic sensor operates within a range of 0.3 to 70 meters, making it ideal for various industrial applications. It features a red laser light source (Class 1) and offers a teach-in function for easy setup. The sensor provides both analogue (4-20 mA) and IO-Link measurement outputs, ensuring versatile integration into existing systems. With a robust enclosure rating of IP69K, it is built to withstand harsh environments, operating efficiently in temperatures ranging from -30°C to +60°C. The sensor's PNP/NPN auto-detect switching output and a resolution of 1 mm ensure precise and reliable performance. It connects via a 5-pin M12 plug, facilitating straightforward installation. For detailed specifications, datasheets, and operating instructions, please refer to the provided links.
- Sensor principle:
- Distance sensor with time-of-flight
- Series:

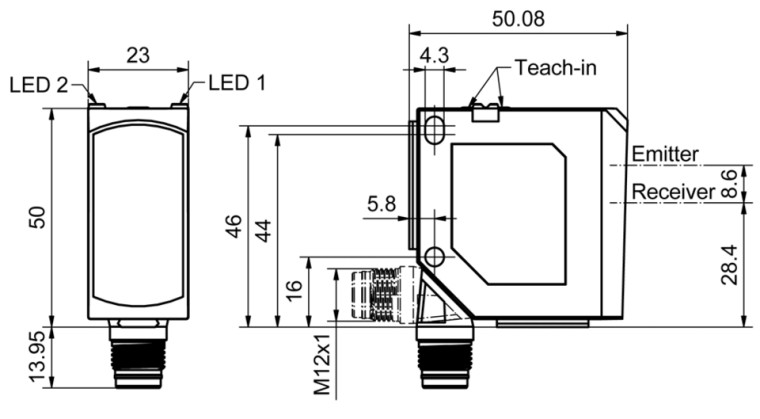

- F55 (50 x 50,1 x 23 mm)
- Working distance min. [mm]:
- 300
- Working distance max. [mm]:
- 70000
- Velocity [Hz]:
- 50
- Interface:
- IO-Link
- Type:
- Cubic
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 1
- Repeatability [mm]:
- 6
- Temperature range [°C]:
- -30 ... +60
- Temperature drift [%]:
- 1 mm/K
- Measurement output:
- IO-Link, Analog (voltage), Analog (current)
- Connection type:
- Plug M12, 5-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
