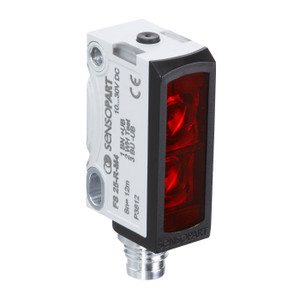

SensoPart FR 25-RL-PS-M3M Laser retroreflective photoelectric sensor
Sensopart
The SensoPart FR 25-RL-PS-M3M is a high-performance laser retroreflective photoelectric sensor designed for precise detection tasks. With a working distance ranging from 0.1 to 15 meters, this sensor utilizes a red laser light source (Class 1) for accurate and reliable operation. It features a teach-in adjustment method, allowing for easy setup and configuration. The sensor operates with a PNP switching output and is equipped with a robust metal plug M8, 3-pin connection type, ensuring secure and stable connectivity.
Built to withstand harsh environments, the sensor boasts an IP69K enclosure rating, making it resistant to dust and high-pressure water jets. It operates efficiently within a temperature range of -20 to +60°C, making it suitable for various industrial applications. The sensor is part of the F25 series, with compact dimensions of 34 x 20 x 12 mm, and offers a high velocity of 4000 Hz for rapid response times.
For further technical details, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This sensor is ideal for applications requiring precise and reliable detection in challenging conditions.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 13000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
