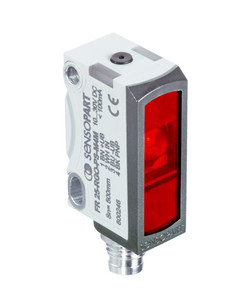

SensoPart FR 25-RLO2-PS-KM4-X05 Autocollimation laser retroreflective photoelectric sensor
Sensopart
The SensoPart FR 25-RLO2-PS-KM4-X05 is a high-performance autocollimation laser retroreflective photoelectric sensor designed for precision and reliability. With a working distance range of 0 to 4000 mm, this sensor utilizes a red Class 1 laser light source for accurate detection. It features a teach-in adjustment for easy setup and a PNP switching output, operating at a velocity of 4000 Hz. The sensor is equipped with a 500 mm pigtail and a 4-pin M8 connector for seamless integration into your system. Built to withstand harsh environments, it boasts an IP69K enclosure rating and operates efficiently within a temperature range of -20 to +60°C. Ideal for various industrial applications, this sensor is part of the compact F25 series, measuring 34 x 20 x 12 mm. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
