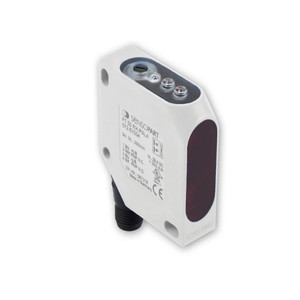

SensoPart FR 50 R-PAL4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 50 R-PAL4 is a high-performance photoelectric retro-reflective sensor designed for precise detection tasks. With a working distance ranging from 0 to 5500 mm, this sensor utilizes a red LED light source and features a potentiometer for easy adjustment. It offers a switching output of PNP/NPN, antivalent, and operates at a velocity of 1000 Hz, making it suitable for fast-paced environments. The sensor is housed in a compact F50 series enclosure (50 x 50 x 17 mm) and is equipped with a robust IP 67 rating, ensuring reliable performance in challenging conditions. It operates within a temperature range of -20 to +45°C and connects via a 4-pin M12 plug. For detailed specifications, datasheets, and CAD files, please refer to the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 5500
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
