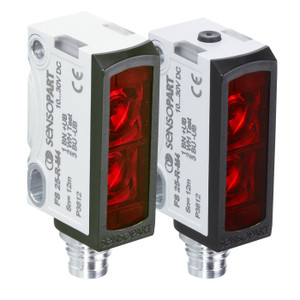

SensoPart FS 25-RL-L-M4M Through-beam laser sensor
Sensopart
The SensoPart FS 25-RL-L-M4M is a high-performance through-beam laser sensor designed for precise detection tasks. With a working distance ranging from 0 to 20 meters, this sensor is ideal for applications requiring long-range detection. It features a robust metal plug M8 4-pin connection and supports IO-Link interface for seamless integration into modern automation systems. The sensor operates with a red laser light source (Class 1) and offers a fast response time with a velocity of 2000 Hz. Its teach-in adjustment capability ensures easy setup and calibration. Built to withstand harsh environments, the sensor is rated IP69 and can operate in temperatures ranging from -20°C to +60°C. The compact design of the F25 series (34 x 20 x 12 mm) makes it suitable for space-constrained installations. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 18000
- Velocity [Hz]:
- 2000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69
