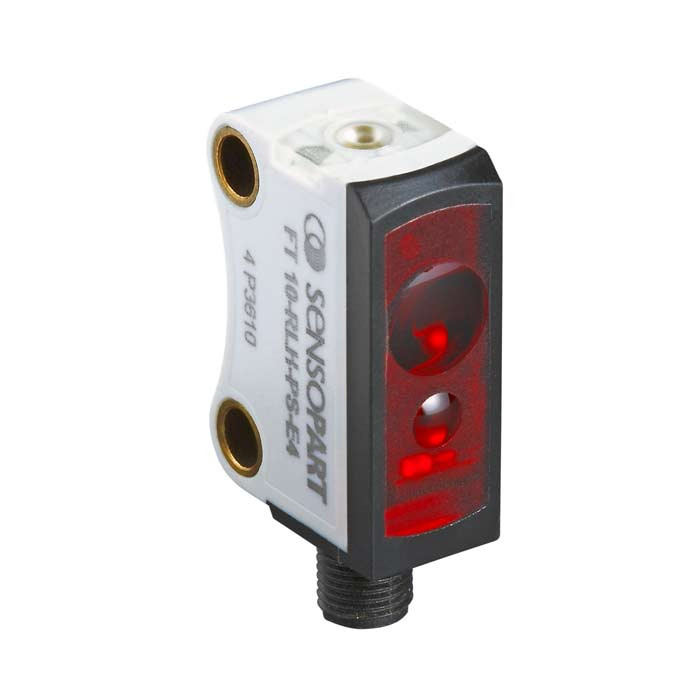

SensoPart FS/FE 10-RL-PS-K4 Through-beam laser sensor
Sensopart
The SensoPart FS/FE 10-RL-PS-K4 is a high-performance through-beam laser sensor designed for precise detection tasks. With a working distance range of 0 to 4000 mm, this sensor is ideal for applications requiring accurate object detection over long distances. It features a photoelectric through-beam sensor principle with separate emitter and receiver units, ensuring reliable performance in various industrial environments.
Equipped with a red Class 1 laser light source, the sensor offers a high switching frequency of 4000 Hz, making it suitable for fast-moving processes. The teach-in adjustment allows for easy setup and configuration, while the PNP switching output ensures compatibility with a wide range of control systems.
The sensor is housed in a compact F10 series enclosure (21.1 x 14.6 x 8 mm) with an IP67 rating, providing robust protection against dust and water ingress. It operates efficiently within a temperature range of -20 to +50°C, making it versatile for use in diverse conditions.
The connection is facilitated by a 2-meter, 4-wire cable, ensuring secure and flexible installation. For further technical details, datasheets, catalogs, brochures, operating instructions, and CAD files are available for download.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
