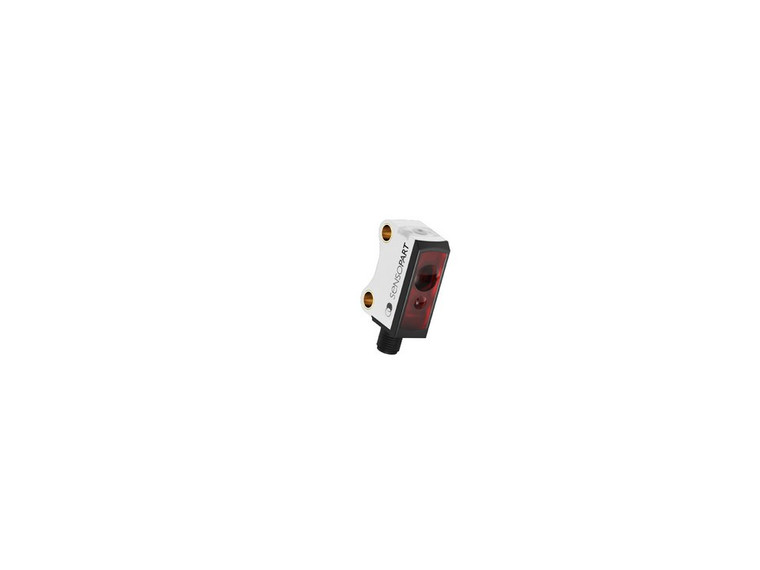

SensoPart FT 10-RLH-PNSL-E4 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 10-RLH-PNSL-E4 is a compact and efficient diffuse laser sensor designed for precise detection with background suppression. It operates within a working distance range of 6 to 70 mm, utilizing a red Class 1 laser light source for accurate sensing. The sensor features a photoelectric diffuse principle with a spot size of 1 x 3 mm, ensuring reliable performance in various applications. With an impressive velocity of 800 Hz, it offers quick response times, making it ideal for high-speed operations.
Equipped with an IO-Link interface, the sensor supports seamless integration into automated systems. The auto-detect function allows for easy switching between PNP and NPN outputs, while the teach-in adjustment provides user-friendly setup. The sensor is housed in a robust enclosure with an IP67 rating, ensuring durability in challenging environments. It operates efficiently within a temperature range of -20 to +50°C and connects via a 4-pin M5 plug.
For further technical details, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This sensor is an excellent choice for applications requiring precise detection and reliable performance.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 70
- Velocity [Hz]:
- 800
- Interface:
- IO-Link
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Plug M5, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
