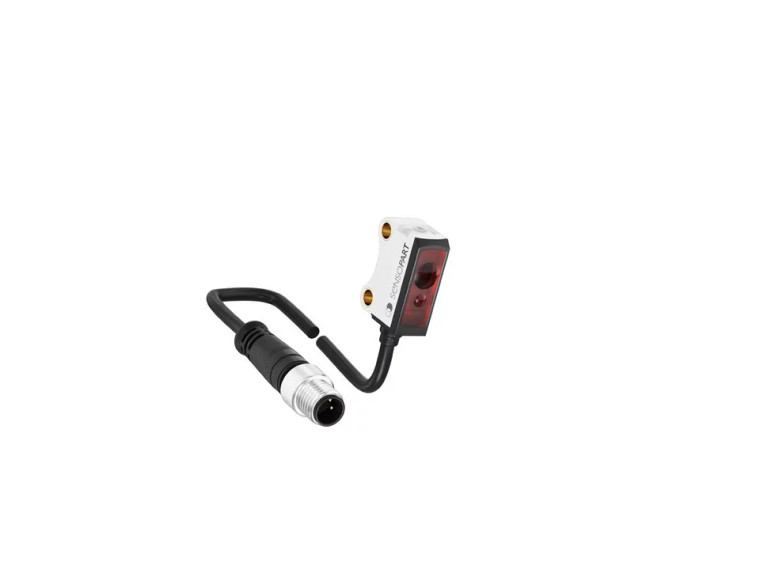

SensoPart FT 10-RLH-PNSL-KM3 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 10-RLH-PNSL-KM3 is a high-performance diffuse laser sensor designed for precision detection with background suppression. It operates within a working distance range of 6 to 70 mm, utilizing a red laser light source (Class 1) for accurate sensing. The sensor features a compact design from the F10 series, measuring 21.1 x 14.6 x 8 mm, and offers a spot size of 1 x 3 mm. With a velocity of 800 Hz, it ensures rapid response times, making it ideal for dynamic applications.
Equipped with an IO-Link interface, the sensor supports easy integration and communication within automated systems. The control input adjustment and auto-detect switching output (PNP/NPN) enhance its versatility across various industrial environments. The sensor is built to withstand challenging conditions, with an operating temperature range of -20 to +50°C and an IP67 enclosure rating for robust protection against dust and water ingress.
The connection is facilitated through a 200 mm pigtail with a 3-wire M8 plug, ensuring secure and reliable connectivity. For further technical details, users can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This sensor is an excellent choice for applications requiring precise and reliable object detection with background suppression capabilities.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 70
- Velocity [Hz]:
- 800
- Interface:
- IO-Link
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Pigtail, plug M8, 3-wire, 200 mm
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
