SensoPart FT 25-RA-60-PNSUL-M4M Miniature distance sensor
Sensopart
The SensoPart FT 25-RA-60-PNSUL-M4M Miniature Distance Sensor is a compact and precise device designed for accurate distance measurement. It operates within a working range of 20 to 80 mm, with a resolution of 0.12 mm, ensuring high precision in various applications. Utilizing red LED light and a triangulation sensor principle, this sensor offers reliable performance with a linearity of 0.4 mm and repeatability of 0.4 mm.

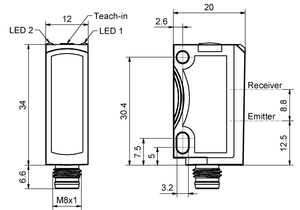

Equipped with a teach-in function and an analog measurement output of 1 to 10 V, the sensor supports auto-detection of PNP/NPN switching outputs. It features a robust metal plug M8 4-pin connection and is compatible with IO-Link interface for seamless integration into automated systems. The sensor is housed in a cubic design with dimensions of 34 x 20 x 12 mm, and it is built to withstand harsh environments with an enclosure rating of IP67 and IP69K.
Operating efficiently at a velocity of 1000 Hz, the sensor maintains performance across a temperature range of -20 to +60°C, with minimal temperature drift of 0.1 mm/K. For further technical details, datasheets, catalogs, brochures, operating instructions, and CAD files are available for download.
- Linearity [mm]:
- 0.4
- Sensor principle:
- Distance sensor with triangulation
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 20
- Working distance max. [mm]:
- 80
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Type:
- Cubic
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.12
- Repeatability [mm]:
- 0.4
- Temperature range [°C]:
- -20 ... +60
- Temperature drift [%]:
- 0,1 mm / K
- Measurement output:
- Analog (voltage), IO-Link
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
