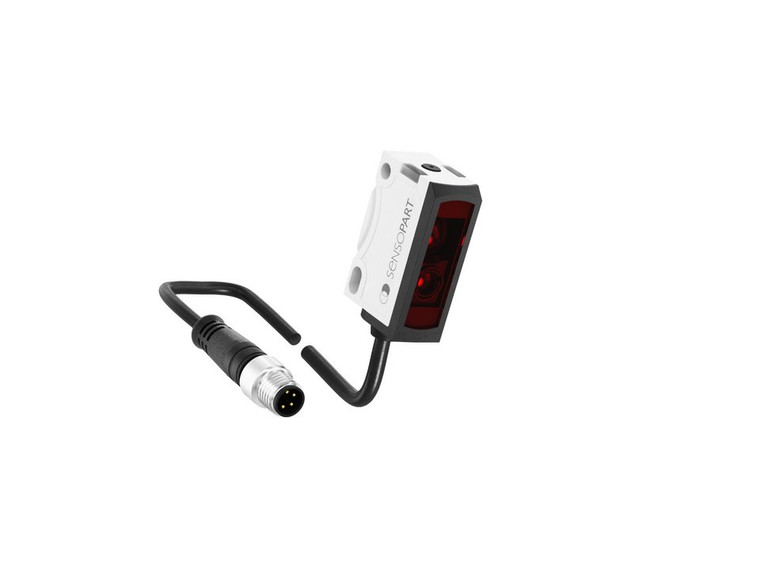

SensoPart FT 25-RH-PNSL-KM4 Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 25-RH-PNSL-KM4 is a high-performance photoelectric diffuse sensor with background suppression, designed for precise detection tasks. It operates within a working distance range of 1 to 200 mm, utilizing a red LED light source for reliable performance. The sensor features a teach-in adjustment for easy setup and an auto-detect function for PNP/NPN switching output, ensuring seamless integration into various applications. With a velocity of 1000 Hz, it is suitable for high-speed operations. The sensor is equipped with an IO-Link interface for advanced communication and control. Its robust design includes a pigtail connection with a 150 mm M8 4-pin connector, and it is rated IP69 for excellent protection against dust and water. The operating temperature range is -20 to +60°C, making it versatile for different environments. For more detailed information, you can view the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 1
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Pigtail, plug M8, 4-wire, 150 mm
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
