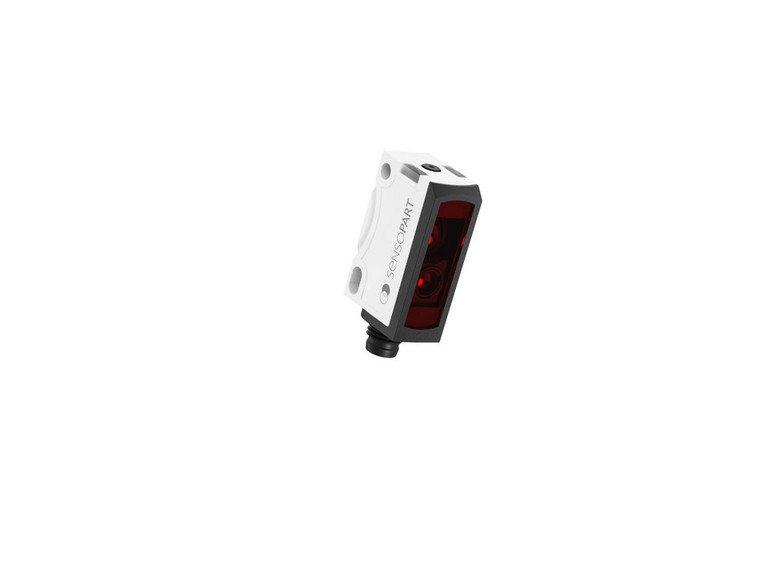

SensoPart FT 25-RLH-PNSL-M4 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 25-RLH-PNSL-M4 is a high-performance diffuse laser sensor designed for precision detection with background suppression. It operates within a working distance range of 4 to 120 mm, utilizing a red Class 1 laser light source for accurate sensing. This sensor features a robust photoelectric diffuse principle with background suppression, ensuring reliable performance even in challenging environments. With a fast velocity of 1000 Hz, it is suitable for high-speed applications.
The sensor is equipped with an IO-Link interface for seamless integration and communication, and it offers a teach-in adjustment for easy setup. It automatically detects PNP/NPN switching outputs, providing flexibility in various applications. The device is housed in a compact F25 series enclosure (34 x 20 x 12 mm) with an IP69 rating, ensuring durability and protection against dust and water ingress.
The SensoPart FT 25-RLH-PNSL-M4 operates efficiently within a temperature range of -20 to +60°C, making it suitable for diverse industrial environments. It features a convenient M8 4-pin plug connection for easy installation. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 4
- Working distance max. [mm]:
- 150
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
