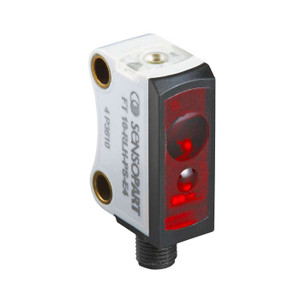

SensoPart FT 10-B-RLF1-NS-K4 Diffuse laser sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 10-B-RLF1-NS-K4 is a high-performance diffuse laser sensor designed for precision detection with background suppression. It features a fixed focus and operates within a working distance range of 6 to 15 mm. The sensor utilizes a red laser light source (Class 1) with a spot size of 1 x 3 mm, ensuring accurate and reliable performance. With a velocity of 1000 Hz, it is suitable for fast-paced applications. The sensor's NPN switching output and 4-wire, 2-meter cable connection provide seamless integration into various systems. It is built to withstand harsh environments with an IP 67 enclosure rating and operates efficiently in temperatures ranging from -20 to +50°C. The compact design, part of the F10 series, measures 21.1 x 14.6 x 8 mm, making it ideal for space-constrained installations. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
