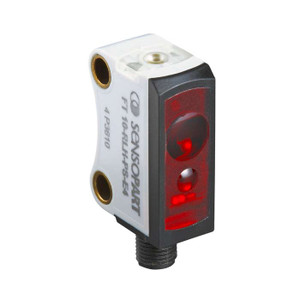

SensoPart FT 10-B-RLF2-PS-KM3 Diffuse laser sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 10-B-RLF2-PS-KM3 is a high-performance diffuse laser sensor designed for precision detection with background suppression. It features a fixed focus with a working distance range of 6 to 30 mm, making it ideal for applications requiring accurate and reliable sensing. The sensor operates with a red laser light source (Class 1) and offers a spot size of 1 x 3 mm. With a velocity of 1000 Hz, it ensures rapid response times. The sensor is equipped with a PNP switching output and a control input for adjustment. It is housed in a compact F10 series enclosure (21.1 x 14.6 x 8 mm) with an IP67 rating, ensuring durability in various environments. The connection is facilitated by a 200 mm pigtail with a 3-pin M8 connector. The sensor operates efficiently within a temperature range of -20 to +50°C. For more detailed information, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 30
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Pigtail, plug M8, 3-wire, 200 mm
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
