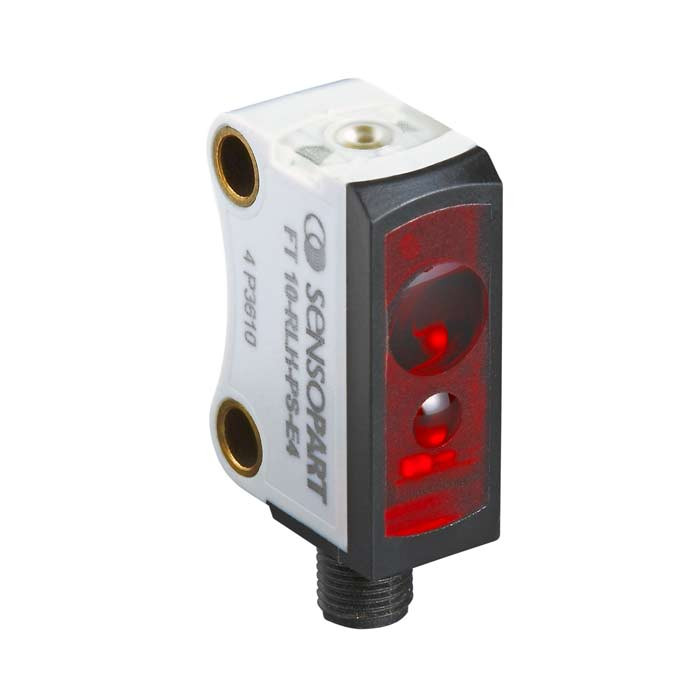

SensoPart FT 10-RF3-PS-K4 Photoelectric diffuse sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 10-RF3-PS-K4 is a compact photoelectric diffuse sensor with advanced background suppression, designed for precise detection tasks. It operates within a working distance of 1 to 50 mm, utilizing a red LED light source for reliable performance. The sensor features a fixed focus and a PNP switching output, making it ideal for various industrial applications. With a high velocity of 1000 Hz, it ensures rapid response times. The sensor is equipped with a 2-meter, 4-wire cable for easy connectivity and is rated IP67 for robust protection against dust and water. It functions efficiently in temperatures ranging from -20 to +60°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 2
- Working distance max. [mm]:
- 50
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
