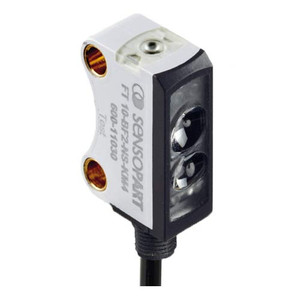

SensoPart FT 25-BF2-PS-K4 BlueLight-Photoelectric diffuse sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 25-BF2-PS-K4 is a high-performance BlueLight-Photoelectric diffuse sensor designed for precision detection with background suppression and fixed focus capabilities. It operates within a working distance of 1 to 80 mm, utilizing a blue LED light source for enhanced accuracy. The sensor features a PNP switching output and is equipped with a 2-meter, 4-wire cable for easy connectivity. With a velocity of 1000 Hz, it ensures rapid response times, making it ideal for fast-paced industrial environments. The sensor is housed in a compact F25 series enclosure (34 x 20 x 12 mm) and boasts an IP69 rating, ensuring robust protection against dust and water ingress. It functions efficiently within a temperature range of -20 to +40°C. For further technical details, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 80
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- LED, blue
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +40
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
