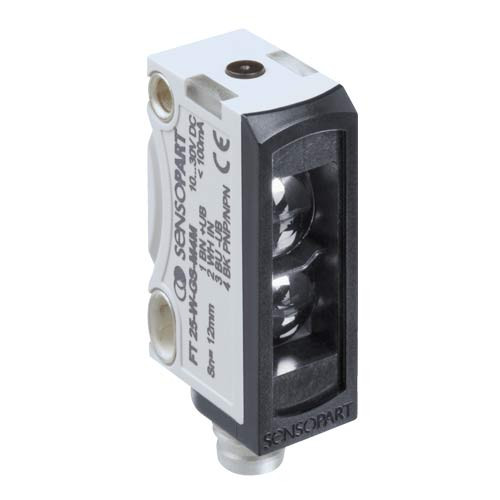

SensoPart FT 25-C1-GS-M4M RGB color sensor
Sensopart
The SensoPart FT 25-C1-GS-M4M RGB color sensor is a precision device designed for accurate color detection with a working distance of 12 ± 3 mm. This sensor utilizes an RGB LED light source to identify colors with a spot size of 1 x 5 mm, making it ideal for applications requiring precise color differentiation. With a high switching frequency of 10 kHz and a push-pull switching output, it ensures rapid and reliable performance. The sensor is housed in a compact F25 series enclosure (34 x 20 x 12 mm) and features a robust metal plug M8 4-pin connection, ensuring durability and ease of integration. It operates efficiently within a temperature range of -20 to +55°C and is rated IP67 and IP69 for protection against dust and water ingress. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Amount of colors:
- 1
- Sensor principle:
- Color sensor
- Spot size [mm]:
- 1 x 5
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 12
- Working distance max. [mm]:
- 12
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
