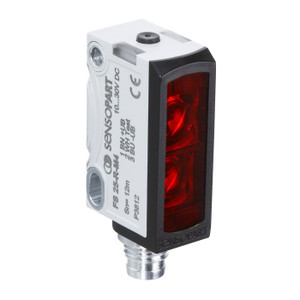

SensoPart FT 25-R-NS-M4M Diffuse photoelectric proximity sensor
Sensopart
The SensoPart FT 25-R-NS-M4M is a high-performance diffuse photoelectric proximity sensor designed for precision and reliability. It operates with a working distance ranging from 0 to 800 mm, utilizing a red LED light source for accurate detection. The sensor features a teach-in adjustment method, allowing for easy setup and calibration. With a switching output of NPN and a velocity of 1000 Hz, it ensures fast and efficient operation. The sensor is equipped with a robust metal plug M8, 4-pin connection type, and is rated IP69K for superior protection against dust and water ingress. It functions effectively within a temperature range of -20 to +60°C, making it suitable for various industrial environments. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 800
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
