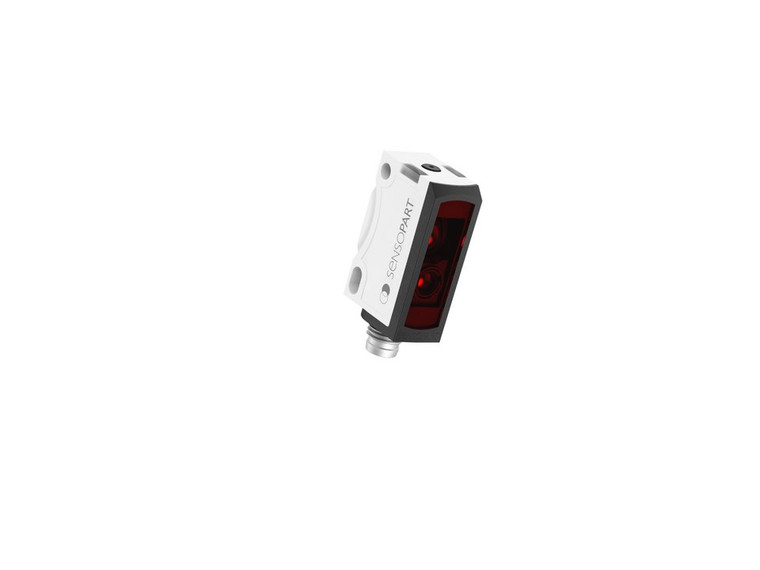

SensoPart FT 25-RH-PS-M3
Sensopart
The SensoPart FT 25-RH-PS-M3 is a state-of-the-art photoelectric proximity sensor designed for precision and reliability in industrial applications. With a sensing range of 1 to 200 mm, it employs advanced red light technology to ensure accurate object detection, even in challenging environments. The sensor's precisely adjustable background suppression allows for reliable switching, regardless of varying object colors and surfaces. Thanks to SensoPart's ASIC technology, it operates effectively even with highly reflective backgrounds. The sensor is easy to align with its clearly visible light spot and features a robust glass-fiber-reinforced plastic housing for durability. Equipped with a PNP output and a sturdy M8 3-pin plug, the FT 25-RH-PS-M3 offers seamless connectivity and efficient performance, making it an ideal choice for demanding industrial settings.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 1
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69K
