SensoPart FT 50 RH-PAL4 Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 50 RH-PAL4 is a high-performance photoelectric diffuse sensor designed with advanced background suppression technology. It features a compact design with dimensions of 50 x 50 x 17 mm, making it ideal for space-constrained applications. The sensor operates with a red LED light source and offers a working distance range from 30 mm to 300 mm, ensuring precise detection in various environments. With a spot size of 8 x 8 mm and a velocity of 1000 Hz, it delivers fast and accurate performance.
This sensor is equipped with a PNP/NPN antivalent switching output and can be easily adjusted using a potentiometer. It is built to withstand harsh conditions, with an operating temperature range of -20 to +60°C and an IP67 enclosure rating for protection against dust and water. The connection is facilitated through a 4-pin M12 plug, ensuring secure and reliable connectivity.
For further technical details, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links. The SensoPart FT 50 RH-PAL4 is an excellent choice for applications requiring reliable and efficient object detection with background suppression.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 8 x 8
- Series:

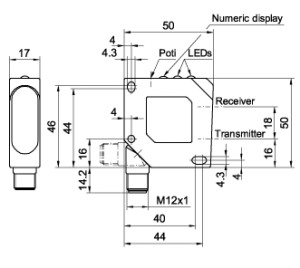

- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
