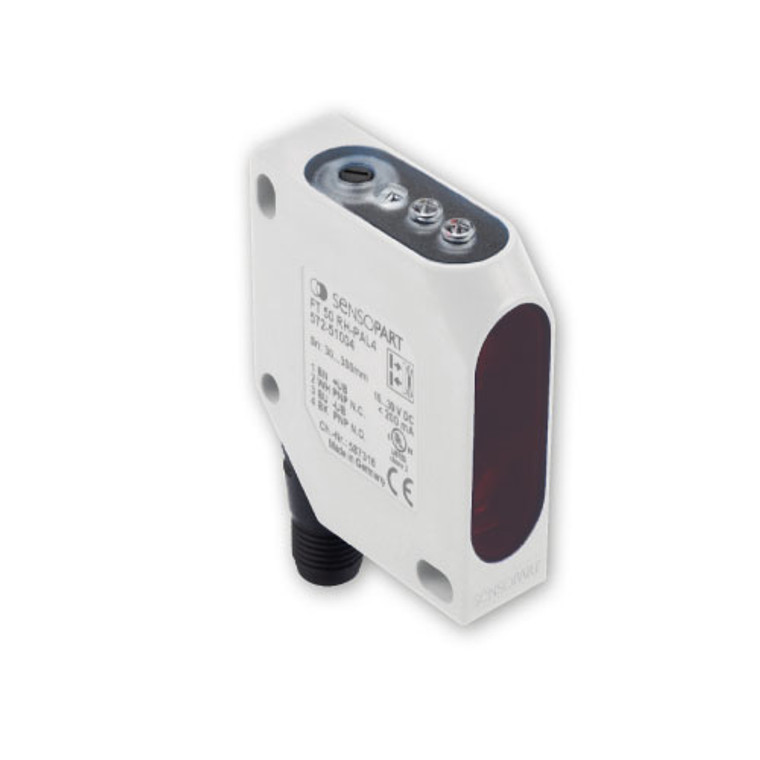

SensoPart FT 50 RLHD-PAK4 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 50 RLHD-PAK4 is a high-performance diffuse laser sensor designed for precise detection with background suppression. It features a working distance range from 50 mm to 300 mm, making it versatile for various applications. The sensor operates with a red laser light source (Class 1) and offers a switching output of PNP/NPN, antivalent. It is equipped with a 3-meter, 4-wire cable for easy connectivity and is housed in a compact F50 series enclosure (50 x 50 x 17 mm) with an IP67 rating, ensuring durability in challenging environments. The sensor's velocity is rated at 2500 Hz, and it includes a potentiometer for adjustment. It functions efficiently within a temperature range of -20°C to +45°C. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 50
- Working distance max. [mm]:
- 300
- Velocity [Hz]:
- 2500
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Cable, 4-wire, 3 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
