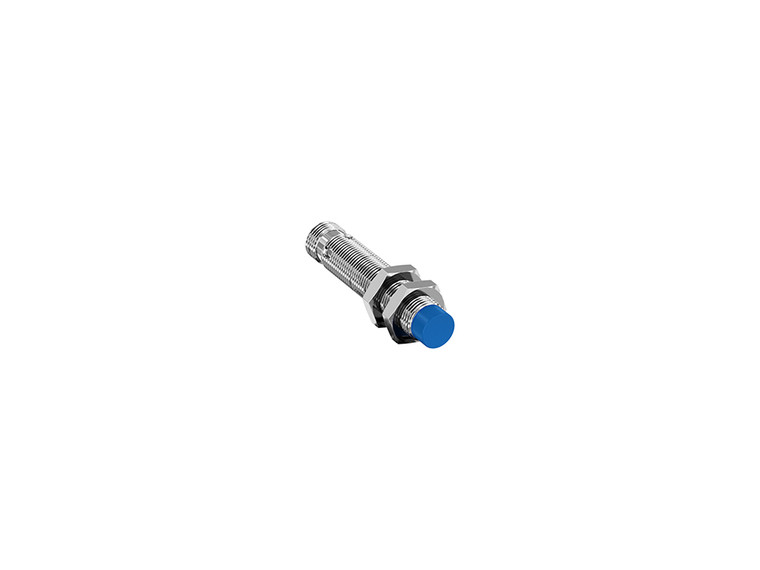

SensoPart IMT 12-S-NB2-PSL-L4M Inductive sensor M12 / standard switching distance
Sensopart
The SensoPart IMT 12-S-NB2-PSL-L4M is a high-performance inductive sensor designed for precision and reliability. Encased in a robust M12 housing, this sensor offers a standard switching distance with a sensing range of 8 mm. It features a non-flush design and utilizes a PNP/NO output configuration, ensuring seamless integration into various industrial applications. The sensor is equipped with a convenient M12 4-pin plug for easy connectivity and supports IO-Link 1.1, providing advanced parameterization options for enhanced customization and control. Ideal for automation systems, this sensor delivers consistent performance and adaptability to meet diverse operational needs.
- Rated operating distance Sn [mm]:
- 8
- Repeatability [mm]:
- 0,4
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 1400
- Mounting:
- Non-flush
- Housing:
- Brass, nickel-plated
- Series:
- M12
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
