SensoPart IMT 8-S-B2-PSL-M3M Inductive sensor M8 / standard switching distance
Sensopart

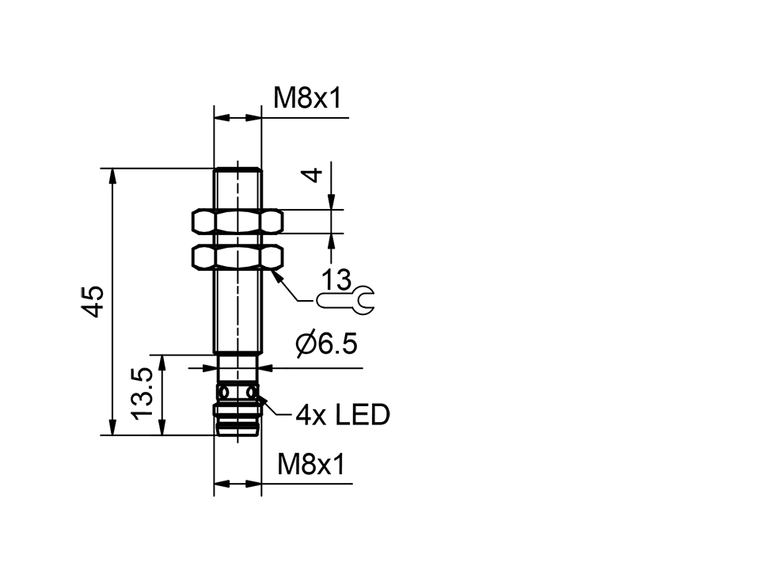

The SensoPart IMT 8-S-B2-PSL-M3M is a high-performance inductive sensor designed for precision and reliability. Encased in a robust M8 housing, this sensor offers a standard switching distance with a sensing range of Sn= 2 mm. It features a PNP/NO output and is equipped with an M8 3-pin plug for easy connectivity. The sensor supports IO-Link 1.1, providing various parameterization options to suit diverse application needs. Ideal for industrial automation, this sensor ensures accurate detection and seamless integration into your systems.
- Rated operating distance Sn [mm]:
- 2
- Repeatability [mm]:
- 0.1
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 5000
- Mounting:
- Flush
- Housing:
- Stainless steel
- Series:
- M08
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP 67
