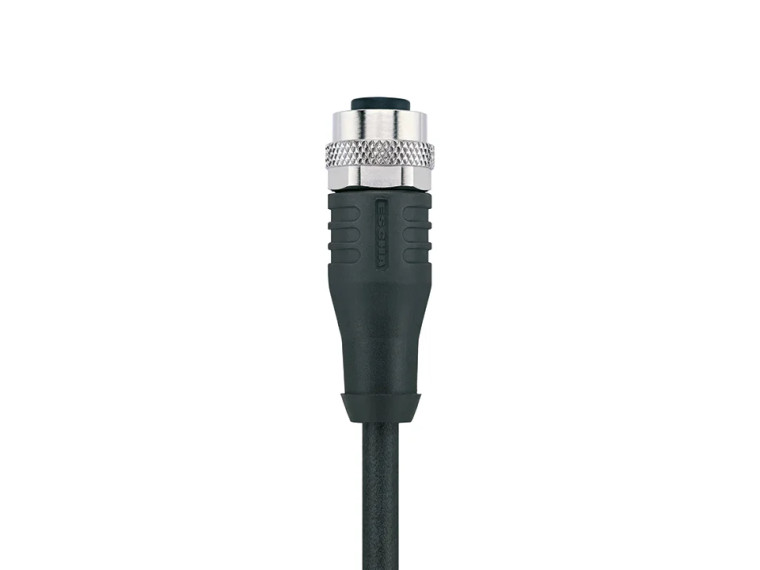

SensoPart L5F/Q8F-0,5 PUR M12 socket, 5-pin, straight, to M16, 8-pin, straight, length 0,5 m, IP 65, IP 67, IP 68
Sensopart
The SensoPart L5F/Q8F-0.5 PUR is a highly adaptable adapter cable crafted for optimal performance in industrial settings. It features a straight M12 socket with 5 pins on Side A and a straight M16 socket with 8 pins on Side B, ensuring dependable connections across a range of devices. With a compact length of 0.5 meters, this cable is perfectly suited for integration with the FR 85 RailPilot system and excels in both robotic and drag-chain applications. Despite being unshielded, it contains 5 wires that facilitate efficient signal transmission. The cable is engineered to withstand harsh environments, boasting an impressive enclosure rating of IP65, IP67, and IP68, which provides superior protection against dust and water ingress. For further technical details, please refer to the datasheet, catalog, and CAD files available through the provided links.
- Suitable for:
- FR 85 RailPilot
- Side A: Connector type:
- M12
- Side A: Number of pins:
- 5
- Side A: Connector orientation:
- straight
- Side B: Connector type:
- M16
- Side B: Number of pins:
- 8
- Side B: Connector orientation:
- straight
- Number of wires:
- 5
- Shielding:
- unshielded
- Suitable for robots:
- Yes
- Suitable for drag-chains:
- Yes
- Category:
- Adapter
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
