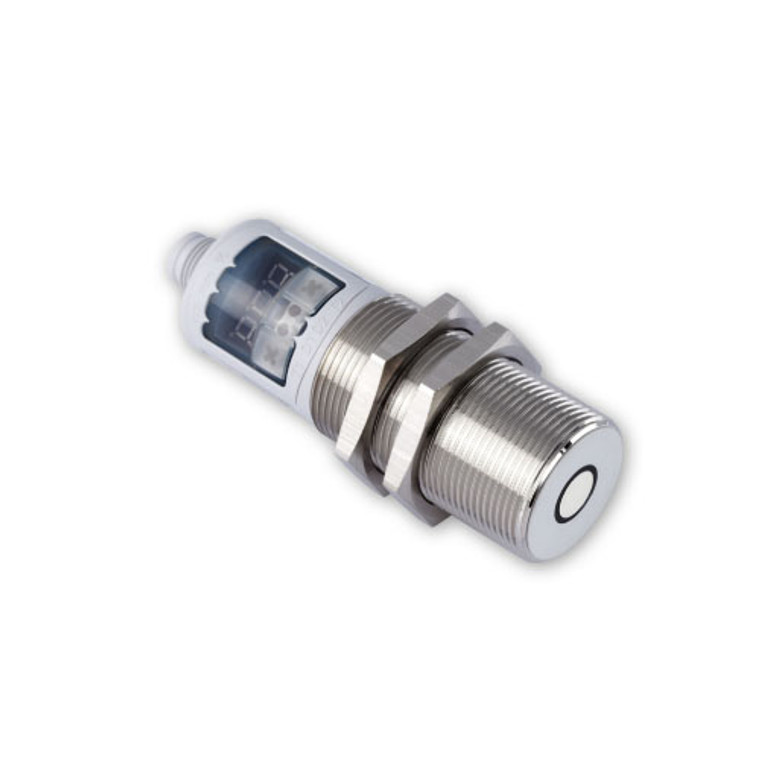

SensoPart UMT 30-1300-A-IUD-L5 Ultrasonic sensor with analogue output

SensoPart UMT 30-1300-A-IUD-L5 Ultrasonic sensor with analogue output

Sensopart
SKU:
UMT 30-1300-A-IUD-L5
$1,229.45
Condition:
New
Current Stock:
Description
Description
  • Ideal for monitoring the filling levels of liquids such as fats and oils
  • Automatic selection to current or voltage output
  • Easy pre-setting of sensor via digital display – sensor immediately ready for operation
  • Synchronisation of up to 10 devices in restricted spaces
  • Additional features with numerous supplementary functions

Product data

Housing barrel type
Type M30
Connection type Plug M12 5-pin
Range 1300 mm
Switching output Analogue
Protection standard IP67

Order Number: 690-51562

Additional Information
Response time [ms]:
92
Output:
Analog (current), Analog (voltage)
Ultrasonic frequency [kHz]:
200
Series:
M30
Working distance min. [mm]:
200
Working distance max. [mm]:
1300
Amount of swithing outputs:
2
Resolution [mm]:
0.4
Repeatability [mm]:
± 0.15%
Temperature range [°C]:
-25 ... +70
Connection type:
Plug M12, 5-pin
Enclosure rating:
IP 67
