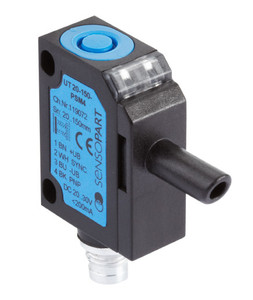

SensoPart UT 20-240-AIM4 Ultrasonic sensor with analogue output
Sensopart
The SensoPart UT 20-240-AIM4 Ultrasonic Sensor is a high-performance device designed for precise distance measurement. With a working range of 50 mm to 240 mm, this sensor offers an analogue output of 4 to 20 mA, ensuring accurate and reliable data transmission. It features a teach-in function for easy setup and a fast response time of 30 ms, making it ideal for dynamic applications. The sensor operates at an ultrasonic frequency of 500 kHz and boasts a resolution of 0.2 mm with repeatability of ±0.15%. It is housed in a compact UT20 series enclosure (32 x 21.6 x 12 mm) and is equipped with a robust metal plug M8, 4-pin connection. The device is built to withstand harsh environments with an IP67 enclosure rating and a temperature range of -25°C to +70°C, with minimal temperature drift of ? 2%. For more information, you can view the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Response time [ms]:
- 30
- Output:
- Analog (current)
- Ultrasonic frequency [kHz]:
- 500
- Series:
- UT20 (32 x 21,6 x 12 mm)
- Working distance min. [mm]:
- 50
- Working distance max. [mm]:
- 240
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.2
- Repeatability [mm]:
- ± 0.15%
- Temperature range [°C]:
- -25 ... +70
- Temperature drift [%]:
- ? 2 %
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
