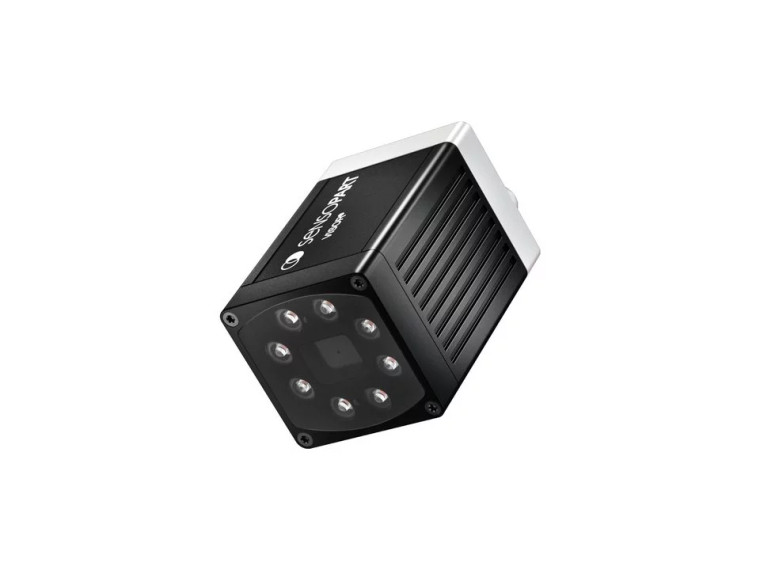

SensoPart V50-CR-A3-R-WD-M2-L VISOR® V50 Code Reader, Advanced, 255 jobs each with 255 detectors, red illumination, increased depth of field, wide field of view, motorized focus, LAN interface, target laser
Sensopart
The SensoPart V50-CR-A3-R-WD-M2-L VISOR® V50 Code Reader is an advanced imaging solution designed for high-performance code reading applications. It supports up to 255 jobs, each with 255 detectors, ensuring versatile and efficient operation. The device features red LED illumination with a wavelength of 625 nm, providing optimal visibility and accuracy. Its wide field of view and enhanced depth of field are complemented by a motorized focus system, allowing for precise adjustments and clear image capture. The code reader is equipped with a monochrome CMOS imaging chip, offering a high resolution of 2560 x 1936 pixels. With a sensor size of 1/1.8" and a pixel size of 2.80 µm, it delivers detailed and sharp images. The device's LAN interface ensures seamless connectivity, while the integrated target laser aids in accurate positioning. The SensoPart V50-CR-A3-R-WD-M2-L is compliant with safety standards, featuring a laser class 1 designation according to IEC 60825-1. Ideal for industrial environments, this code reader is a reliable choice for demanding applications. For more technical details, please refer to the datasheet.
- Image chip type:
- Monochrome
- Light source:
- LED
- Light color:
- Red
- Wavelength [nm]:
- 625
- LED risk category [RG]:
- 0
- Explanation of risk category:
- Acc. to EN 62471
- Resolution:
- QSXGA
- Number of pixels (H x V) [px]:
- 2560 x 1936
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/1.8
- Pixel size [µm]:
- 2.80
- Field of view type:
- Wide
- Focal length [mm]:
- 9.6
- Opening angle [°]:
- 42.0
- Min. field of view (X x Y) [mm]:
- 32 x 24
- Aperture number:
- 5.6
- Depth of field:
- Enhanced
- Focus drive:
- Motorized
- Target laser:
- Laser red (655 nm)
- Laser class:
- 1 (IEC 60825-1)
- Datasheet:
- View
