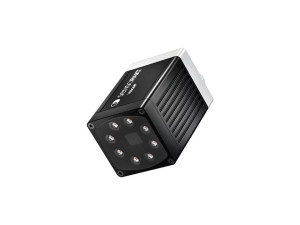

SensoPart V50-CR-A3-W-W-M2-L VISOR® V50 Code Reader, Advanced, 255 jobs each with 255 detectors, white illumination, wide field of view, motorized focus, LAN interface, target laser
Sensopart
The SensoPart V50-CR-A3-W-W-M2-L VISOR® V50 Code Reader is an advanced code reading solution designed for high-performance applications. It features a wide field of view and motorized focus, allowing for precise and efficient scanning. Equipped with a monochrome CMOS imaging chip, the device offers a high resolution of QSXGA with 2560 x 1936 pixels, ensuring detailed image capture. The white LED illumination with a wavelength of 4,500°K provides optimal lighting conditions, while the target laser aids in accurate positioning. The code reader supports LAN interface with EIP and PROFINET protocols, making it suitable for various industrial environments. With a laser class of 1, it adheres to safety standards according to IEC 60825-1. The device's compact design includes a 9.6 mm focal length and a 42.0° opening angle, with a minimum field of view of 32 x 24 mm. The motorized focus drive and standard depth of field enhance its versatility in different settings. For more detailed specifications, please refer to the datasheet.
- Image chip type:
- Monochrome
- Light source:
- LED
- Light color:
- White
- Wavelength [°K]:
- 4,500
- LED risk category [RG]:
- 1
- Explanation of risk category:
- Acc. to EN 62471
- Resolution:
- QSXGA
- Number of pixels (H x V) [px]:
- 2560 x 1936
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/1.8
- Pixel size [µm]:
- 2.80
- Field of view type:
- Wide
- Focal length [mm]:
- 9.6
- Opening angle [°]:
- 42.0
- Min. field of view (X x Y) [mm]:
- 32 x 24
- Aperture number:
- 2.8
- Depth of field:
- Standard
- Focus drive:
- Motorized
- Target laser:
- Laser red (655 nm)
- Laser class:
- 1 (IEC 60825-1)
- Datasheet:
- View
