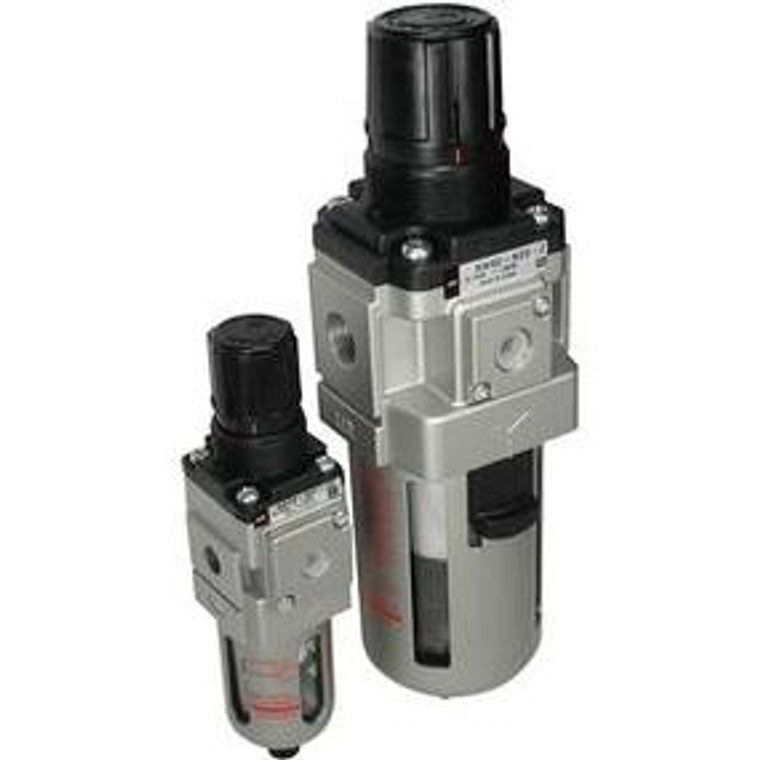

SMC 10-AW40-N04G-JRZ filter regulator, clean room
SMCthis combination filter/ regulator minimizes space and piping by integrating the 2 units into one. standard features include a relieving regulator, which can be quickly locked by pushing down on the adjustment knob. there are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc. the aw is part of the family of modular air preparation units and can be combined with other similar sized products. this series is available in four body sizes with piping from m5 to 3/4 in rc, npt or g thread types.
- modular type filter regulator
- rated filtration ( m): 2, 10, 20, 40 , 70 or 100
- optional embedded pressure gauge
- available with built-in backflow mechanism
- rc, g(pf) or npt threads
- Special Application:
- Clean Series
- Body Size:
- 40
- Reverse Flow:
- No
- Thread:
- NPT
- Port Size:
- Size 40
- Accessory (Not Attached):
- Round Pressure Gauge w/o Limit Indicator
- Option 2:
- JR+Name & Caution Plates for Bowl &
