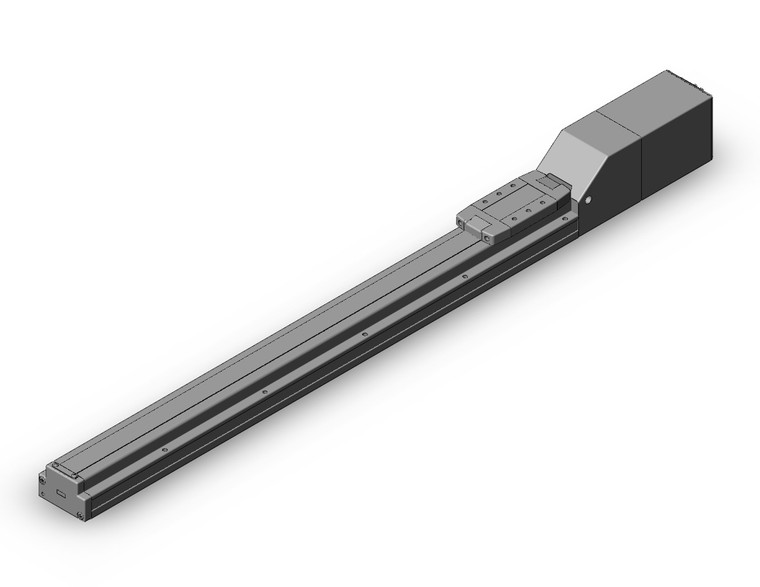

SMC 11-LEFS32S7A-600-S5B1 Ball Screw Drive Actuator

SMC 11-LEFS32S7A-600-S5B1 11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
11-LEFS32S7A-600-S5B1
Availability:
Contact us to confirm availability and lead times.
$3,440.00
Condition:
New
Current Stock:
Description

11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

Series LEFS Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. work load: 60 kg;
  • Positioning repeatability: ±0.02 mm;
  • Compatible controllers: LECP6(Manufacture Discontinued) LECA6 LECP1 LECPA LECPMJ;;Series LEFS AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration (20,000 mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Positioning repeatability: ±0.02 mm;
  • Compatible controllers: LECSA LECSB LECSC LECSS
    • Additional Information
    Clean Series:
    Vacuum Suction Type
    Accuracy:
    Basic
    Size:
    32
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
    Lead:
    Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
    Stroke:
    Stroke 600 mm
    Motor Option:
    Without Lock
    Vacuum Port:
    Left
    Positioning Pin Hole:
    Housing B Bottom
    Cable Type:
    Standard Cable
    Cable Length:
    5 m
    Driver Type:
    LECSB1, Power Supply Voltage 100V To 120V(Manufacture discontinued)
    I/O Cable Length:
    Without Cable
