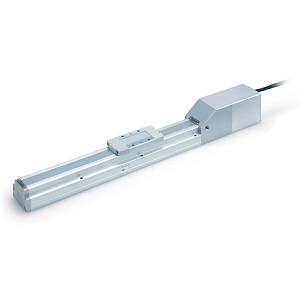

SMC 11-LEFSH32A-300BR ball screw drive actuator high precision

SMC 11-LEFSH32A-300BR 11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
11-LEFSH32A-300BR
$1,630.00
Condition:
New
Current Stock:
Description

11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

Series LEFS Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. work load: 60 kg;
  • Positioning repeatability: ±0.02 mm;
  • Compatible controllers: LECP6(Manufacture Discontinued) LECA6 LECP1 LECPA LECPMJ;;Series LEFS AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration (20,000 mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Positioning repeatability: ±0.02 mm;
  • Compatible controllers: LECSA LECSB LECSC LECSS
    • Additional Information
    Clean Series:
    Vacuum Suction Type
    Accuracy:
    High Precision Type
    Size:
    32
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
    Stroke:
    Stroke 300 mm
    Motor Option:
    With Lock
    Vacuum Port:
    Right
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type:
    Without Cable
    Actuator Cable Length:
    Without Cable
    Controller Type:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
