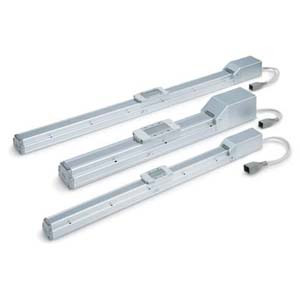

SMC 25A-LEFS32RA-300-R5 ball screw drive actuator

SMC 25A-LEFS32RA-300-R5 25A-LEFS Series Compatible With Secondary Batteries Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
25A-LEFS32RA-300-R5
$1,620.00
Condition:
New
Current Stock:
Description

25A-LEFS Series Compatible With Secondary Batteries Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

  • Copper (Cu) and Zinc (Zn) Free*; * Except motors, cables, controllers/drivers;
  • Compatible with a low dew point -80°C
    • Additional Information
    Compatible With Secondary Batteries:
    Compatible With Secondary Batteries
    Accuracy:
    Basic
    Size:
    32
    Motor Mounting Position:
    Right Side Parallel
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
    Stroke:
    Stroke 300 mm
    Motor Option:
    Without Lock
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type:
    Robotic Cable (Flexible Cable)
    Actuator Cable Length:
    5 m
    Controller Type:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
