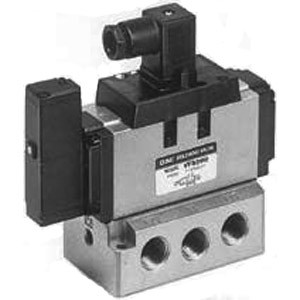

SMC 30-VFS5210R-5DZ-04 Valve, Sol. Csa Approved

SMC 30-VFS5210R-5DZ-04 VFS5000 Series 5 Port Pilot Operated Solenoid Valve Metal Seal,Non Plug-in Conforming To CSA Standard

SMC
SKU:
30-VFS5210R-5DZ-04
Availability:
Contact us to confirm availability and lead times.
$210.50
Condition:
New
Current Stock:
Description

VFS5000 Series 5 Port Pilot Operated Solenoid Valve Metal Seal,Non Plug-in Conforming To CSA Standard

  • Metal seal main valve construction;
  • Extensive size variations;
  • For driving medium and large cylinders;
  • A wide variety of manifold options;
  • Compatible with control units (VFS2000/3000/4000, Base mounted type);
  • Manifold type No.: VV5FS1 VV5FS2 VV5FS3 VV5FS4 VV5FS5
    • Additional Information
    Symbol:
    2 Position Double
    Body Type:
    Non Plug-in Type Sub-plate
    Body Option:
    Standard
    Pilot Type:
    External Pilot
    Coil Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal
    Option:
    With Light/Surge Voltage Suppressor
    Pilot Valve Manual Override:
    Non-locking Push Type (Flush)
    Porting Specifications:
    Side Ported
    Port Size:
    1/2
    Thread Type:
    Rc
