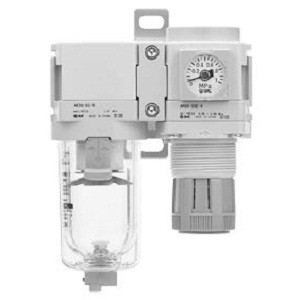

SMC AC30B-02CE-D AC20B-D?AC40B-D Series Air Combination Filter Regulator + Lubricator

SMC AC30B-02CE-D AC20B-DAC40B-D Series Air Combination Filter Regulator + Lubricator

SMC
SKU:
AC30B-02CE-D
$0.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

AC20B-D?AC40B-D Series Air Combination Filter Regulator + Lubricator

  • Modular design with uniform body style;
  • Better visibility & environmental resistance;
  • 2-layer construction: The bowl is covered with a transparent bowl guard!; Better visibility: 360°;
  • No tools are required.; Easier replacement of the element (AF-D only);
  • Attachments:; Spacer: Y200-D, Y300-D, Y400-D; Spacer with bracket: Y200T-D, Y300T-D, Y400T-D
    • Additional Information
    Body Size:
    30
    Pipe Thread Type:
    Rc
    Port Size:
    1/4
    Float Type Auto Drain:
    N.C.(Normally Closed) Drain Port Is Closed When Pressure Is Not Applied
    Pressure Gauge:
    Square Embedded Type Pressure Gauge (With Limit Indicator)
    Digital Pressure Switch:
    Without Digital Pressure Switch
    The Pressure Relief 3 Port Valve:
    Without The Pressure Relief 3 Port Valve
    Set Pressure:
    0.05 To 0.85 Mpa Setting
    Bowl:
    Polycarbonate Bowl
    Filter Regulator Drain Port:
    With Drain Cock
    Exhaust Mechanism:
    Relieving Type
    Flow Direction:
    Flow Direction:Left To Right
    Drain Port Option b:
    Drain Cock Without Barb Fitting (For ?6 X ?4 Nylon Tube)
    Unit Representation:
    Unit On Product Label:MPa,°C,Pressure Gauge In SI Units:MPa
