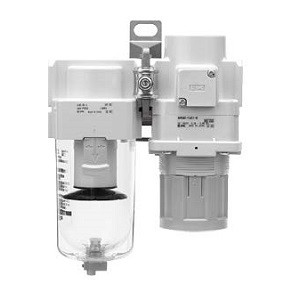

SMC ACG30B-02G1-B ACG20B-B?ACG40B-B Series Air Combination Air Filter + Regulator

SMC ACG30B-02G1-B ACG20B-B?ACG40B-B Series Air Combination Air Filter + Regulator

SMC
SKU:
ACG30B-02G1-B
$86.22
Condition:
New
Current Stock:
Description

ACG20B-B?ACG40B-B Series Air Combination Air Filter + Regulator

  • Improved visibility by mounting the pressure gauge on the top of the knob;
  • Transparent bowl guard; Improved environmental durability due to 2-layer construction (Body size 30 or more); Better visibility: 360º; Light weight: Approx. 12% reduction
    • Additional Information
    Body Size:
    30
    Model Combination:
    Model Combination:Air Filter+Regulator
    Pipe Thread Type:
    Rc
    Port Size:
    1/4
    Float Type Auto Drain:
    Without Auto Drain
    Mounting Angle of Pressure Gauge:
    Mounting Angle of Pressure Gauge 0°
    Attechment:
    Without Attachment
    Set Pressure:
    0.05 To 0.85 Mpa Setting
    Bowl:
    Polycarbonate Bowl
    Drain Port Option a:
    With Drain Cock
    Exhaust Mechanism:
    Relieving Type
    Flow Direction:
    Flow Direction:Left To Right
    Drain Port Option b:
    Drain Cock Without Barb Fitting (For ?6 X ?4 Nylon Tube)
    Knob:
    Downward
    Pressure Unit:
    Product Label,Caution Label For Bowl,And Pressure Gauge In SI Units:MPa
