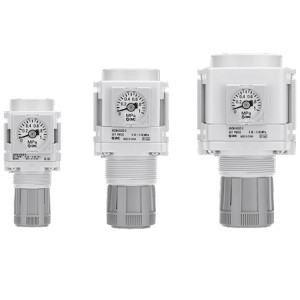

SMC AR20M-N0101G-1Z-D AR20M-D~AR40M-D Series Modular Type Common Supply Regulator(With Backflow Function Option)

SMC AR20M-N0101G-1Z-D AR20M-D~AR40M-D Series Modular Type Common Supply Regulator(With Backflow Function Option)

SMC
SKU:
AR20M-N0101G-1Z-D
Availability:
Factory Stock
$47.90
Condition:
New
Current Stock:
Description

AR20M-D~AR40M-D Series Modular Type Common Supply Regulator(With Backflow Function Option)

  • Supply different pressure for multiple applications; OUT port is on the back of the product;
  • Space-saving design and reduced piping labor;
  • Modular connection is possible;
  • Branch piping
    • Additional Information
    Body Size:
    20
    Common Supply Type:
    Common Supply Type
    With Backflow Function:
    Without Backflow Function
    Pipe Thread Type:
    NPT
    IN Port Size:
    1/8
    OUT Port Size:
    1/8
    Mounting:
    Without Mounting Option
    Option a:
    Round Type Pressure Gauge (With Limit Indicator)
    Option b:
    Without Digital Pressure Switch
    Set Pressure:
    0.02 To 0.2 Mpa Setting
    Exhaust Mechanism:
    Relieving Type
    Knob:
    Downward
    Pressure Unit:
    Unit On Product Label:psi
    Made To Order:
    Standard
