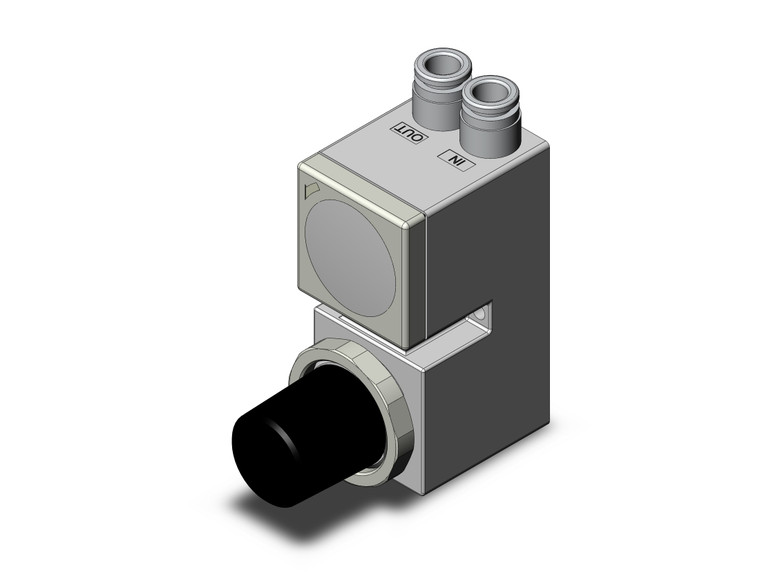

SMC ARM10F2-58GP-5ZA-N Compact Mfld Regulator

SMC ARM10F2-58GP-5ZA-N ARM10F Series Compact Manifold Regulator, Single Unit Type, Front Handle Type

SMC
SKU:
ARM10F2-58GP-5ZA-N
Availability:
Contact us to confirm availability and lead times.
$143.80
Condition:
New
Current Stock:
Description

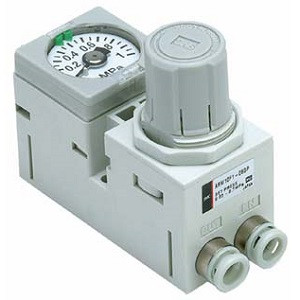

ARM10F Series Compact Manifold Regulator, Single Unit Type, Front Handle Type

  • Free selection in response to positioning conditions; Knob positions: Top/Front/Bottom; Piping directions: Up/Down; One-touch fitting varieties: Straight/Elbow;
  • Varieties and sizes of One-touch fittings can be changed;
  • Standard model equipped with backflow function;
  • Compatible with digital pressure switch
    • Additional Information
    IN/OUT Piping Position:
    IN Side:Top OUT Side:Top
    IN/OUT Fitting Type:
    IN Side Straight 1/4 OUT Side Straight 1/4
    Accessory:
    Pressure Display With Panel Nut
    Semi-standard Specifications:
    0.35 MPa setting Oil-free
    Unit Representation:
    Digital Pressure Switch: With Unit Switching (MPa is Initially set.)
    Digital Presure Switch Output Specifications:
    NPN open collector
