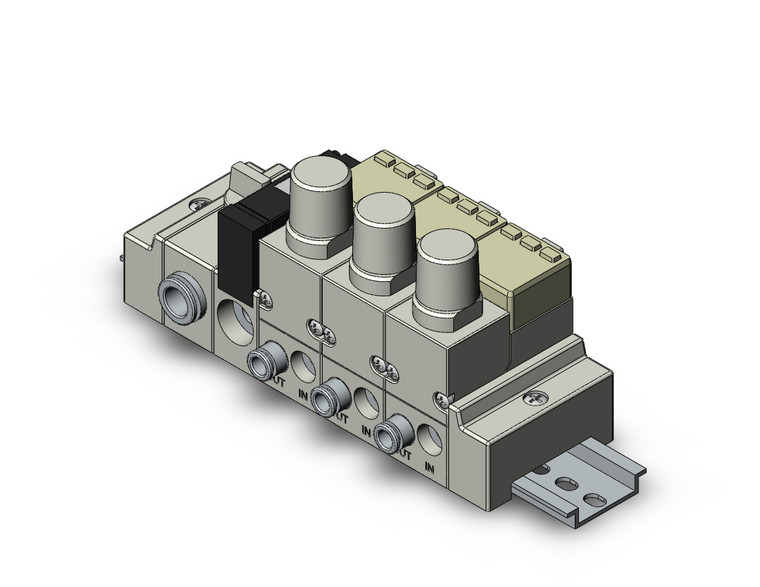

SMC ARM11AB1-362-MZA-P Compact Manifold Regulator

SMC ARM11AB1-362-MZA-P ARM11A Series Compact Manifold Regulator, Manifold Type, Common Supply Type

SMC
SKU:
ARM11AB1-362-MZA-P
Availability:
Factory Stock
$501.40
Condition:
New
Current Stock:
Description
The SMC ARM11AB1-362-MZA-P ARM11A Series Compact Manifold Regulator is designed for versatile applications, offering free selection in response to positioning conditions. It features adjustable knob positions at the top, front, or bottom, and allows for piping directions either up or down. The manifold regulator is equipped with a variety of one-touch fitting options, including straight and elbow types, which can be easily changed to suit your needs. This standard model comes with a backflow function and is compatible with digital pressure switches, ensuring precise and reliable performance in your system.
Additional Information
Handle Position:
Front
IN/OUT Piping Position:
IN Side:Bottom OUT Side:Bottom
Regulator Block Stations:
3 Stations
IN/OUT Fitting Type:
IN Side Straight 3/8 OUT Side Straight 1/4
Accessory:
With Pressure Display,3-Way Valve Common Supply Block+ Pressure Switch Block,L Side(Left)
Semi-standard Specifications:
None
Unit Representation:
Digital Pressure Switch: With Unit Switching (MPa is Initially set.)
Digital Presure Switch Output Specifications:
PNP Open Collector
