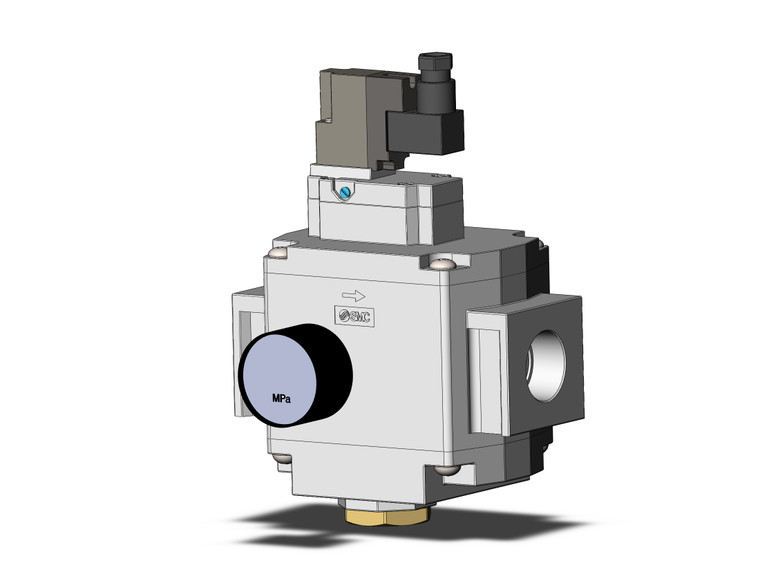

SMC AV5000-06GS-5DZB-A AV2000-A·3000-A·4000-A·5000-A Series Soft Start-up Valve
SMC
$216.30
The SMC AV5000-06GS-5DZB-A AV2000-A·3000-A·4000-A·5000-A Series Soft Start-up Valve is designed to enhance the efficiency and safety of your air system. This advanced valve features an air-operated type with the newly added AVA series and a lockout type with the AVL series. It is engineered to gradually raise the initial pressure in an air system with low-speed air supply and allows for quick exhaust by cutting off the air supply. With a power consumption of just 0.35 W, this valve offers improved flow rate characteristics, achieving up to 2.3 times the standard C[dm3/(s·bar)] at 9.2. It is energy-efficient, ensuring no air flow when the main valve is switched, and provides improved adjustability at low-speed air supply. The valve's smaller profile and integrated silencer contribute to reduced work hours and a more streamlined installation process.
- Body Size:
- 50
- Thread Type:
- Rc
- Port Size 1(P),2(A):
- 3/4
- Option a:
- Without Mounting Option
- Option b:
- Round Type Pressure Gauge (With Limit Indicator)
- Option c:
- Silencer (Built-in)
- Coil Rated Voltage:
- 24 VDC
- Electrical Entry:
- Type D (DIN Terminal/With Connector)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Slotted Type
- Flow Direction:
- Flow Direction:Left To Right
- Pressure Unit:
- Name Plate And Pressure Gauge In SI Units: MPa
