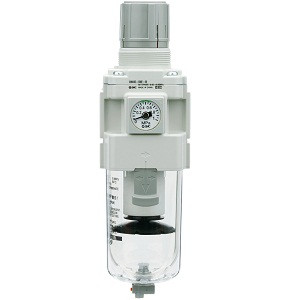

SMC AW20K-N02-CZ-B Filter/Regulator, Modular F.R.L.

SMC AW20K-N02-CZ-B AW20-AW60-B Series Modular Type Filter Regulator With Backflow Function Option

SMC
SKU:
AW20K-N02-CZ-B
Availability:
Factory stock: 78
$35.45
Condition:
New
Current Stock:
Description

AW20-AW60-B Series Modular Type Filter Regulator With Backflow Function Option

  • Integrated filter and regulator units save space and require less piping;
  • With the backflow function it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly
    • Additional Information
    Body Size:
    Body Size
    With Backflow Function:
    With Backflow Function
    Thread Type:
    NPT
    Port Size:
    1/4
    Option a:
    Without Mounting Option
    Option b:
    Without Auto Drain
    Option c:
    Without Pressure Gauge?Without Set Nut (For Panel Mount)
    Semi-Standard a:
    0.05 to 0.85 MPa Setting, With Bowl Guard
    Semi-Standard b:
    With Drain Cock? Relieving Type? Flow Direction: Left to Right? Name Plate? Caution Plate For Bowl? And Pressure Gauge In Imperial Units: psi,?
    Made To Order:
    Standard
