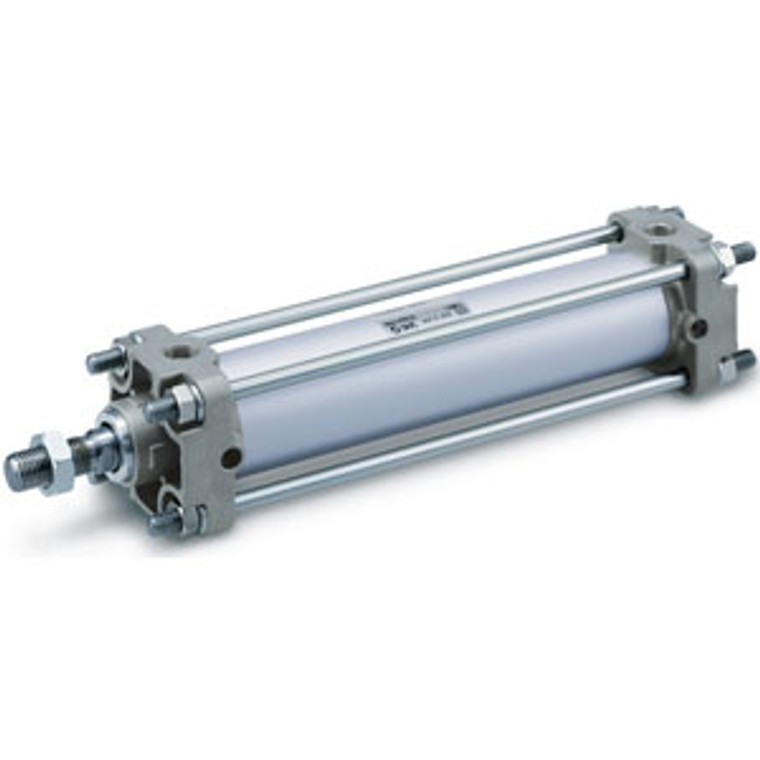

SMC CDA2L40M-400Z-M9NW CA2 Series Air Cylinder With Stable Lubrication Function (Lub-retainer) Standard

SMC CDA2L40M-400Z-M9NW CA2 Series Air Cylinder With Stable Lubrication Function (Lub-retainer) Standard

SMC
SKU:
CDA2L40M-400Z-M9NW
Availability:
Contact us to confirm availability and lead times.
$243.10
Condition:
New
Current Stock:
Description

CA2 Series Air Cylinder With Stable Lubrication Function (Lub-retainer) Standard

  • Applicable to operation in micro-powder (10 to 100 ?m) /general environments;
  • Durability is 4 times stronger than the standard model in micro-powder;?environments;
  • The overall length and mounting are the same as those of the standard model;?(Except for some models);
  • Grease film is formed on the piston rod surface to improve the durability;
  • Entry of dust and foreign matter is prevented;
  • The number of operating cycles can be improved even in general environments
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Axial Foot Style
    Bore Size:
    Bore Size 40 mm
    Cylinder Stroke:
    Standard Stroke 400 mm
    Accessories1:
    Without Bracket
    Accessories2:
    Without Bracket
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
