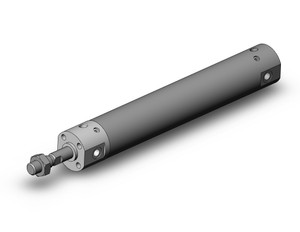

SMC CDG1BA20-100FZ CG1 Air Cylinder, 20mm Bore, 100mm Stroke, Double Acting, Single Rod

The SMC CDG1BA20-100FZ Cg1 Air Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder from the C(D)G1-Z series is designed with versatility in mind, featuring a 20mm bore size that is part of a comprehensive range of 8 bore sizes, ensuring compatibility with a wide array of systems. Constructed with an impact extruded aluminum tube, the CDG1BA20-100FZ offers an exceptionally smooth internal finish, which minimizes break-away pressure and ensures a seamless stroke action. This design is crucial for applications requiring precise control and efficiency. The cylinder is equipped with female piston rod threads as a standard feature, enhancing its adaptability to various setups. Engineers will appreciate the ease of fine-tuning the auto switch position, a feature that simplifies installation and maintenance. The absence of trunnion mounting female threads further streamlines the integration process. Additionally, the cylinder supports various mounting bracket options, providing flexibility in installation to meet specific application requirements. For those seeking detailed technical specifications, the Series Catalog is available for download, offering comprehensive insights into the product's capabilities. Furthermore, an AutoCAD file is accessible for seamless integration into design projects, facilitating precise planning and implementation. Explore the SMC CDG1BA20-100FZ Cg1 Air Cylinder for a robust solution that combines advanced engineering with practical functionality, ideal for enhancing performance in manufacturing and automation environments.
