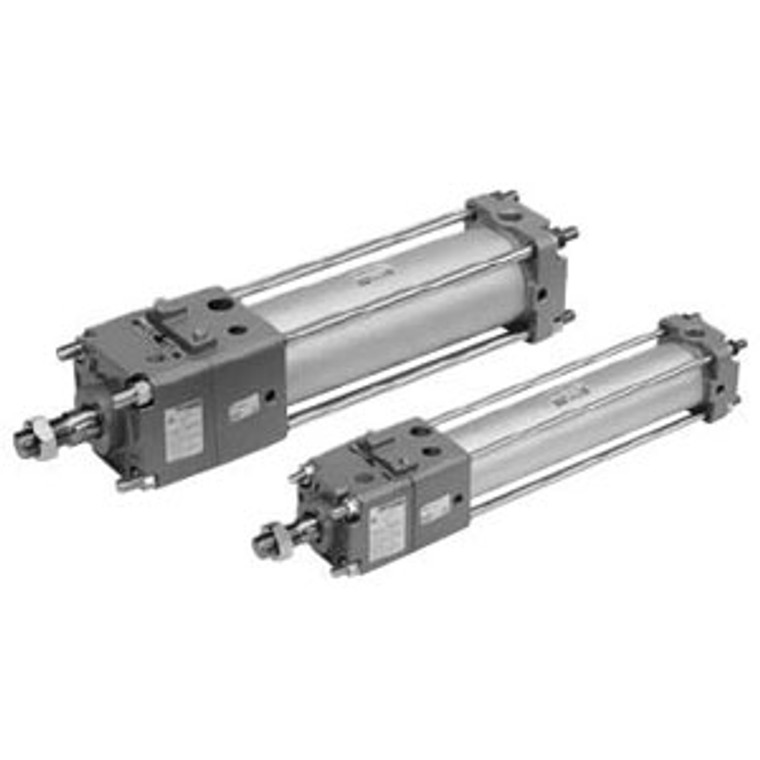

SMC CDLA2F40-700-E-J59ZS-XC3BC CLA2 Series Fine Lock Cylinder Double Acting,Single Rod

SMC CDLA2F40-700-E-J59ZS-XC3BC CLA2 Series Fine Lock Cylinder Double Acting,Single Rod

SMC
SKU:
CDLA2F40-700-E-J59ZS-XC3BC
$553.95
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CLA2 Series Fine Lock Cylinder Double Acting,Single Rod

  • Locking cylinder ideal for intermediate stops, emergency stops and drop prevention. (Bi-directional lock);
  • Magnetic field resistant 2-color indication solid state auto switch D-P3DW series mountable;
  • With auto switch (Series CDLA2: CDLA2)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Flange
    Cylinder Tube Material:
    Aluminum Tube
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 700 mm
    Suffix For Cylinder:
    Without Rod Boot,With Cushion On Both Ends(When Air-hydro,Without Cushion)
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    Without Rod Boot,With Cushion On Both Ends(When Air-hydro,Without Cushion)
    Lock Operation:
    Spring Locking (Exhaust Locking)
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Special Port Location:Rod Port Location Seen From The Rod Side:B
