SMC CDM2B25F-25A Cylinder, Air

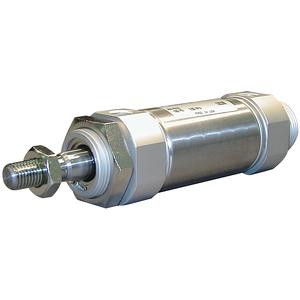

SMC CDM2B25F-25A CM2 Series Air Cylinder

SMC
SKU:
CDM2B25F-25A
Availability:
Factory Stock
$59.00
Condition:
New
Current Stock:
Description

CM2 Series Air Cylinder

  • Compact, lightweight tubing resistant against external impacts is used;
  • Achieves 1.5 times longer service life than that of the existing CM series;
  • With auto switch (Series CDM2: CDM2, CDM2W, CDM2K, CDM2KW,;?CDM2R, CDM2RK, CDM2Q, CDM2 P, CDBM2);;?Production of the series CM2 will be discontinued in October 2013;? (Except Non-rotating rod type/Single acting: CM2K, Centralized piping: ;?CM2 P, With end lock: CBM2);?Please select the series CM2-Z
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Type:
    Pneumatic
    Mounting Style:
    Basic Style
    Bore Size:
    Bore Size 25 mm
    Port Thread Type:
    Built-in One-touch Fitting
    Cylinder Stroke:
    Standard Stroke 25 mm
    Suffix For Cylinder:
    Without Rod Boot,Air Cushion
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    Without Rod Boot,Rubber Bumper
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Bracket:
    None
    Made To Order:
    Standard
