SMC CDM2C20-100SZ-NW-M9BSBPC Cylinder, Air

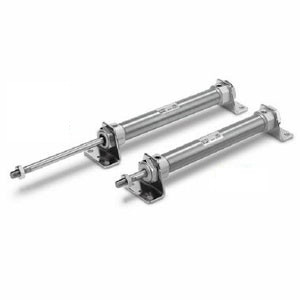

SMC CDM2C20-100SZ-NW-M9BSBPC CM2-Z Series Air Cylinder

SMC
SKU:
CDM2C20-100SZ-NW-M9BSBPC
$239.70
Condition:
New
Current Stock:
Description

CM2-Z Series Air Cylinder

  • Female rod end available as standard;
  • Easy fine adjustment of auto switch position;
  • Single clevis and trunnion pivot brackets are available;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately);
  • With auto switch (Series CDM2-Z: CDM2?CDM2W?CDM2K?CDM2KW?CDM2R?CDM2RK)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Single Clevis Style
    Bore Size:
    Bore Size 20 mm
    Cylinder Stroke:
    Standard Stroke 100 mm
    Action:
    Single Acting,Spring Return
    Rod And Thread:
    Rod End Male Thread
    Pivot Bracket:
    Pivot Bracket Is Shipped Together With The Product,But Not Assembled
    Rod End Bracket:
    Double Knuckle Joint
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
