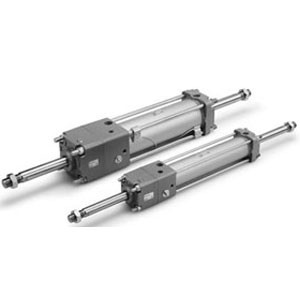

SMC CDNA2WL50-75-D-M9BWSDPC CNA2W Series Cylinder With Lock Double Acting,Double Rod

SMC CDNA2WL50-75-D-M9BWSDPC CNA2W Series Cylinder With Lock Double Acting,Double Rod

SMC
SKU:
CDNA2WL50-75-D-M9BWSDPC
$623.30
Condition:
New
Current Stock:
Description

CNA2W Series Cylinder With Lock Double Acting,Double Rod

  • Locking cylinder ideal for intermediate stops, emergency stops and drop prevention. (Bi-directional lock);
  • Magnetic field resistant 2-color indication solid state auto switch;?D-P3DW series mountable;
  • With auto switch (Series CDNA2: CDNA2, CDNA2W)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Axial Foot
    Tube Material:
    Aluminum Tube
    Bore Size:
    Bore Size 50 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 75 mm
    Suffix For Cylinder:
    Without Rod boot,With cushion on both ends
    Lock Direction:
    Both Directions
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
